Saving time in fire suppression by using sprinklers (ceiling fire suppression system)

Sprinkler system operation typically begins within one to four minutes after the onset of a fire. In contrast, it generally takes at least five minutes for a fire alarm to be registered and reported to the fire department. Additionally, the travel time required for a fire truck to reach the incident site is at least ten minutes, followed by further time needed to set up the equipment and deliver water through the hoses to the fire. This additional delay can result in a significantly larger fire, requiring substantially greater amounts of water for suppression

What is a sprinkler system?

Sprinklers are water discharge systems designed to control or suppress fires when firefighters’ ability to provide adequate water flow for extinguishing is limited. These systems are engineered to reduce heat build-up from a fire and achieve full suppression before manual firefighting intervention becomes necessary.

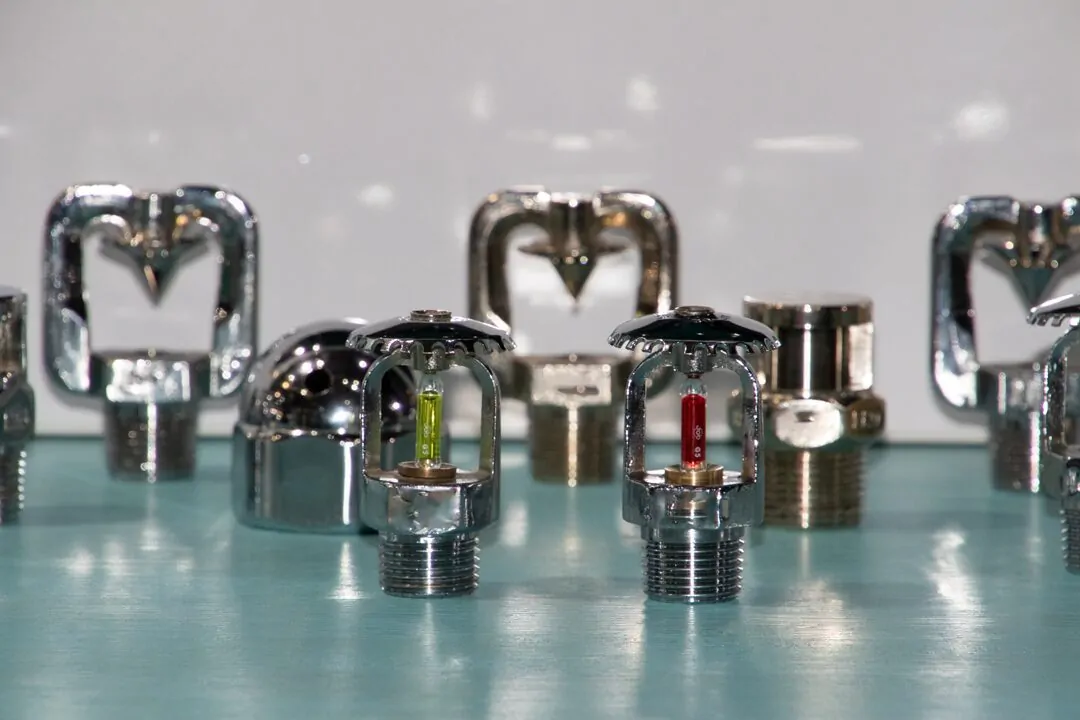

You may have wondered how sprinklers work. A sprinkler is a water-discharging device connected to a building’s water piping network, typically supplied by the municipal water system. Each sprinkler head is sealed by either a heat-sensitive glass bulb or a fusible metal link with a low-melting-point alloy, controlling the water flow. The glass bulb or heat sensor serves as a plug that holds back the water pressure within the pipe until the ambient temperature reaches the sprinkler’s design activation temperature.

In a standard sprinkler system, each head operates independently when the preset activation temperature is reached. This localized operation ensures that only sprinklers near the fire activate, concentrating water flow where needed, reducing water damage to unaffected areas, and maintaining adequate pressure for effective fire suppression.

Liquid Inside a Sprinkler :
Inside the sprinkler’s glass bulb is both liquid and vapor phases—commonly, alcohol-based liquids are used. The operation relies on the expansion of the liquid inside the bulb as it heats. This expansion reduces the relative volume of the vapor phase compared to the liquid phase, causing the bulb to shatter and activate the sprinkler.

Sprinkler Piping Systems :
Sprinkler piping can be installed using three common configurations, chosen based on building conditions, water supply availability, and entry point location, But the three most common methods are Tree System, Looped System and Gridded System

Sprinkler Components :
A sprinkler consists of several key components, each serving a specific function :

Frame :
The frame forms the main body of the sprinkler. All other elements of the system are mounted onto the sprinkler frame.

Thermal Element :
The thermal element, typically made of either a glass bulb or a fusible link, performs two critical functions:

Fire detection : Control of water flow

Cap :
The volume of water discharged from the sprinkler is regulated by an orifice. Since leakage may occur through this orifice, a cap is placed between the orifice and the thermal element. When a fire occurs and the temperature rises, the thermal element activates and is destroyed, allowing the cap to detach under water pressure and enabling water discharge at high velocity.
