What Are Cable Ladder Fittings?
Cable ladder fittings and accessories can be looked at from two angles: by material and coating (steel, stainless steel, hot- and cold-dip galvanized) — covered in full on our Cable Ladder product page — and by the role each fitting plays along the cabling route, which is what this page focuses on.
To complete a full cable ladder route, the ladder itself is rarely enough. Depending on the shape of the route, direction changes, and how the pieces connect to one another, you'll need a combination of cable ladder fittings. Ader Tavan Nami manufactures this entire product family in-house, so your industrial cabling route can be completed in a unified, standardized way, from a single supplier.
Below is the most complete list of cable ladder fittings and accessories, along with what each one is used for.
Cable Ladder Fittings by Role in the Route — Quick Selection Guide
| Your Project Need | Recommended Cable Ladder Fitting |
|---|---|
| Straight run / base of a heavy-duty cabling route | Cable Ladder |

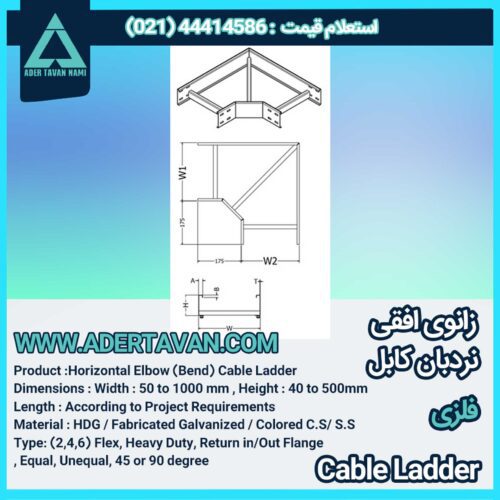

| Horizontal direction change (turning at the same level) | Cable Ladder Horizontal Elbow |
| Vertical direction change (going up or down) | Cable Ladder Vertical Elbow |

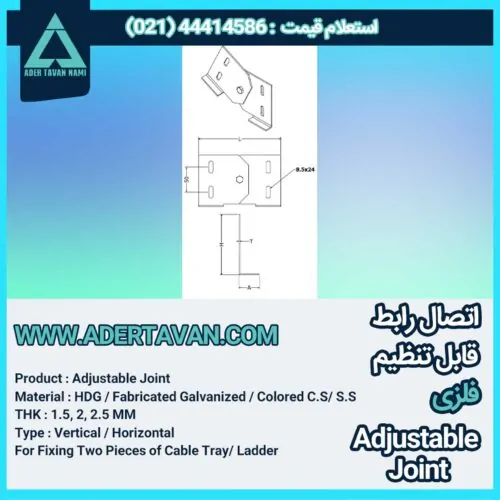

| Joining two ladder sections on long runs | Cable Ladder Joint |
| Reducing route width without manual cutting | Cable Ladder Reducer |
| Branching the route in three directions | Tee For Cable Ladder |
| Branching the route in four directions | Cross For Cable Ladder |
| Securing cables onto the ladder rungs | Hold Down Clamp |
| Securing and supporting the ladder on a wall or ceiling | Bracket |
Cable Ladder Accessories by Project Environment
Choosing between cable ladder fittings doesn't only depend on the shape of the route — the project environment plays a decisive role too:
| Environment / Project Type | Main Cabling Challenge | Recommended Cable Ladder Fitting |
|---|---|---|
| Power plants and substations | Routing heavy power cables over long spans | Cable Ladder + Cable Ladder Joint |
| Factories and industrial production lines | Frequent direction changes between equipment | Cable Ladder Horizontal Elbow |
| Shafts and routes crossing between floors | Vertical direction change in the route | Cable Ladder Vertical Elbow |
| Electrical rooms and main distribution panels | Branching to several outlet routes at once | Tee or Cross For Cable Ladder |
| Oil and gas platforms, open outdoor areas | Mounting on structures with no ceiling, needs firm support | Bracket |
| Vertical routes with heavy cables | Preventing cables from sagging or shifting on the rungs | Hold Down Clamp |
| High cable-density projects | Gradual width reduction at the end of the run | Cable Ladder Reducer |
How to Choose the Right Cable Ladder Fitting
Choosing correctly between cable ladder fittings and accessories usually comes down to three simple questions:
1. Is your cabling route straight, or does it need to change direction? For straight runs, the cable ladder alone is enough. As soon as the route needs to turn or move between levels, horizontal or vertical elbows come into play.
2. How long is the project, and how many ladder sections need to be joined? Cable ladders are typically manufactured in standard 3- and 6-meter lengths; for longer projects, joints play a key role in the strength and continuity of the entire route.
3. Do the cables on the ladder rungs need extra securing? On vertical routes or long spans, using a hold down clamp prevents cables from sagging or shifting, increasing the safety of the route.
If you're unsure which cable ladder fittings your project needs, Ader Tavan Nami's technical team can review your project drawings and prepare an exact parts list for you.
For details on cable ladders by material and coating (steel, stainless steel, cold- and hot-dip galvanized) and a comparison with cable trays, see our Cable Ladder product page.
Reference Standards
Ader Tavan Nami's cable ladders are manufactured in accordance with the requirements of the Iranian National Standards Organization and the international NEMA VE-1 (Metal Cable Tray Systems) standard, ensuring both dimensional requirements and load-bearing capacity for your cabling route.
