Foam Maker / Foam Pourer ( ATCH2 ), also known as a Top Pourer ( ATCH2 ), is one of the core components of a foam system, responsible for discharging foam from the top of the tank directly onto the surface of the flammable liquid. Designed for fixed-roof tanks, this unit differs from the foam chamber, which injects foam from the side of the tank wall — the foam maker / foam pourer is instead mounted at the top of the tank and spreads the foam layer directly across the surface of the burning material.
Foam Maker / Foam Pourer (Top Pourer) Technical Specifications

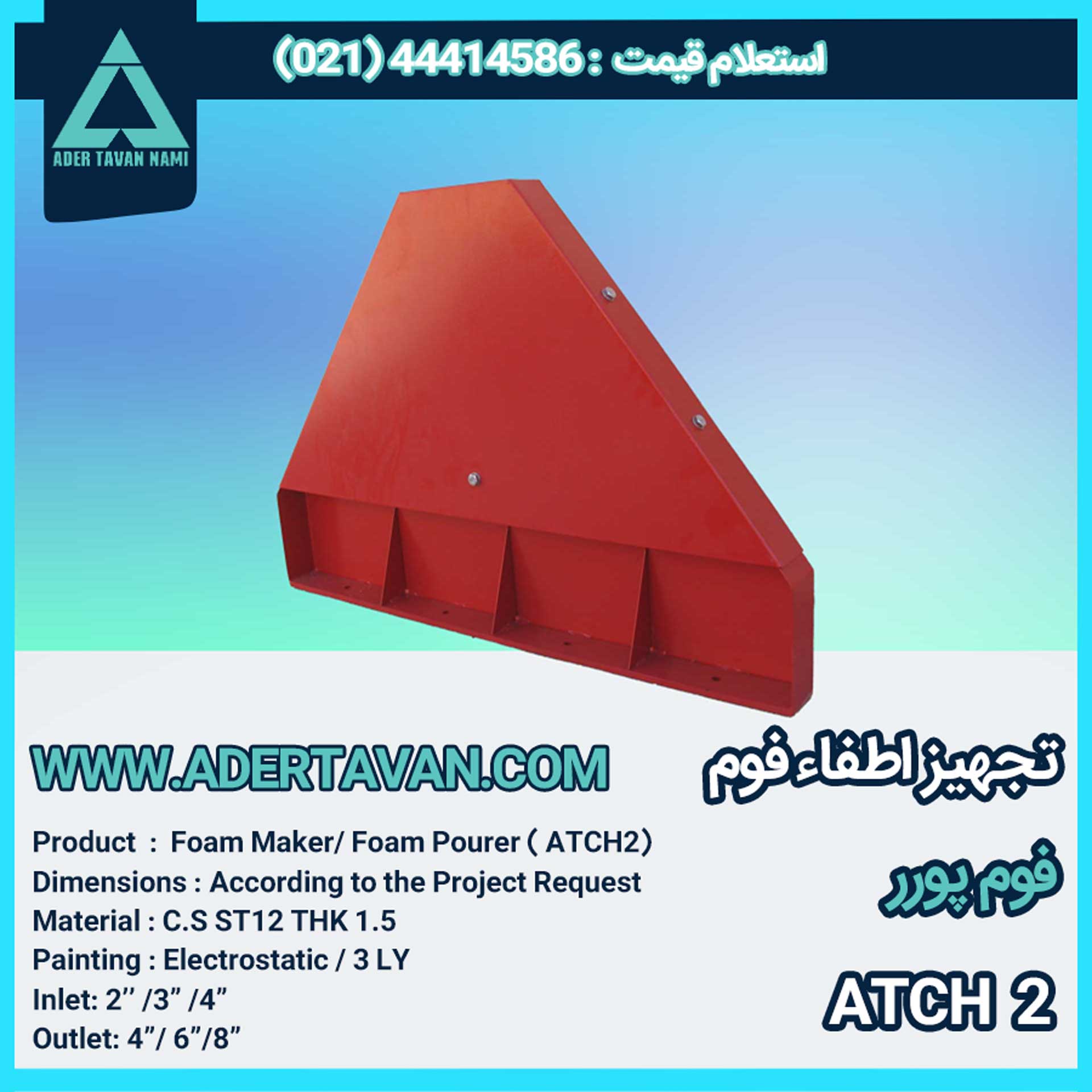

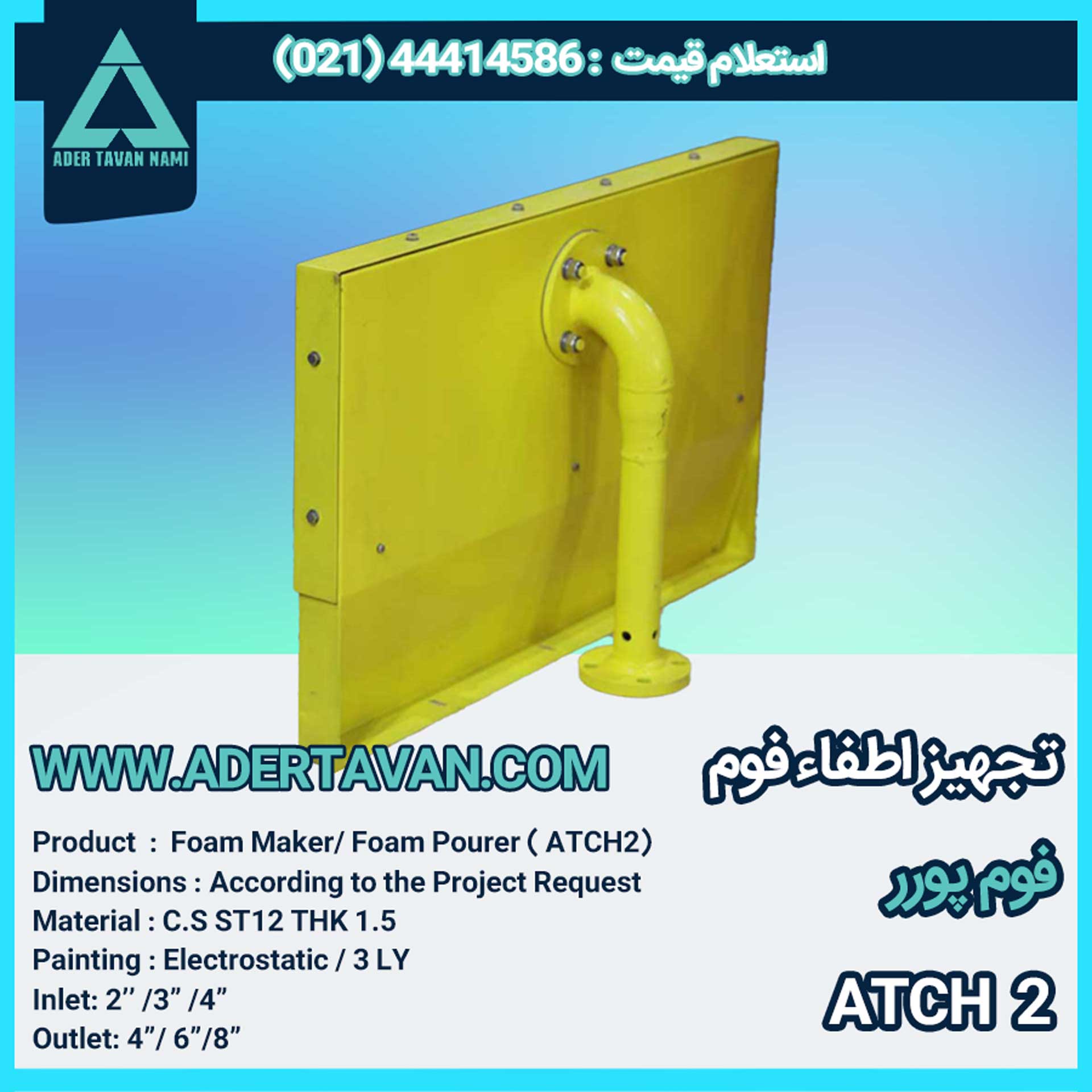

The body of Ader Tavan Nami’s foam maker / foam pourer is made from ST12 steel sheet, 1.5 mm thick or heavier. This unit is manufactured with 2″, 3″, and 4″ inlet sizes and 4″, 6″, and 8″ outlet sizes, and is fitted with a 2×2.5″ valve. The top pourer’s standard working pressure is 4 bar, and the body is coated either electrostatically or with a three-layer (3LY) finish for resistance to corrosion and weather exposure. Final dimensions are determined according to each project’s drawings and work order.
Foam Maker / Foam Pourer Applications in Industrial Projects
The foam maker / foam pourer (top pourer) is one of the key components of a foam fire suppression setup, used in high-risk projects such as fixed-roof fuel storage tanks, refineries, and flammable material warehouses. As foam flows out through its outlet, a stable layer forms over the surface of the liquid, blocking oxygen from reaching the flame and preventing the fire from spreading.
Why Choose Ader Tavan Nami’s Foam Maker / Foam Pourer?
Every foam maker / foam pourer (top pourer) built at Ader Tavan Nami is fully customized to match each project’s required inlet/outlet size, working pressure, and safety standard. Before production begins, our technical team provides a free consultation based on the tank type (fixed or floating roof) and the volume of flammable material involved, to help select the most suitable size and model.
