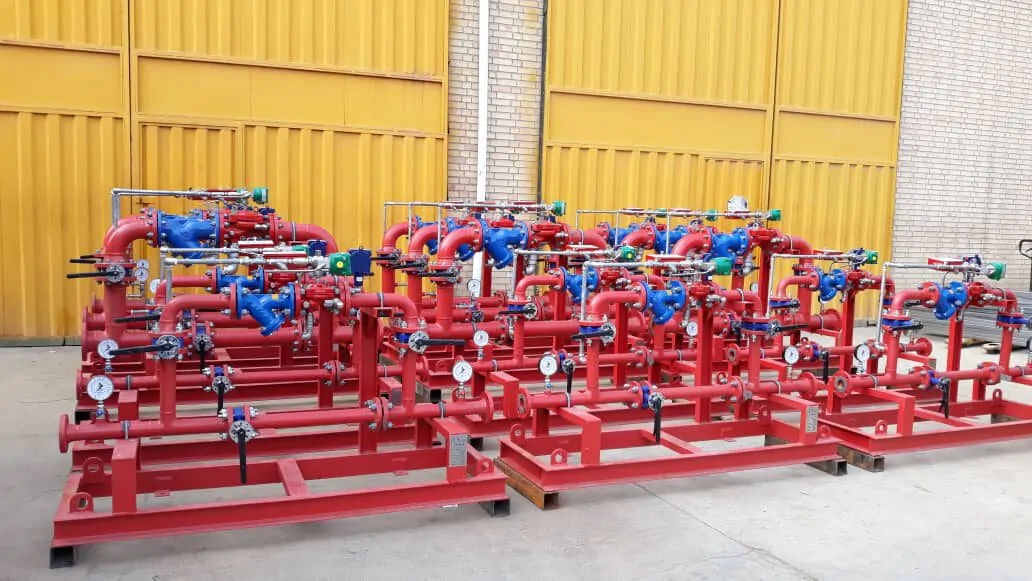

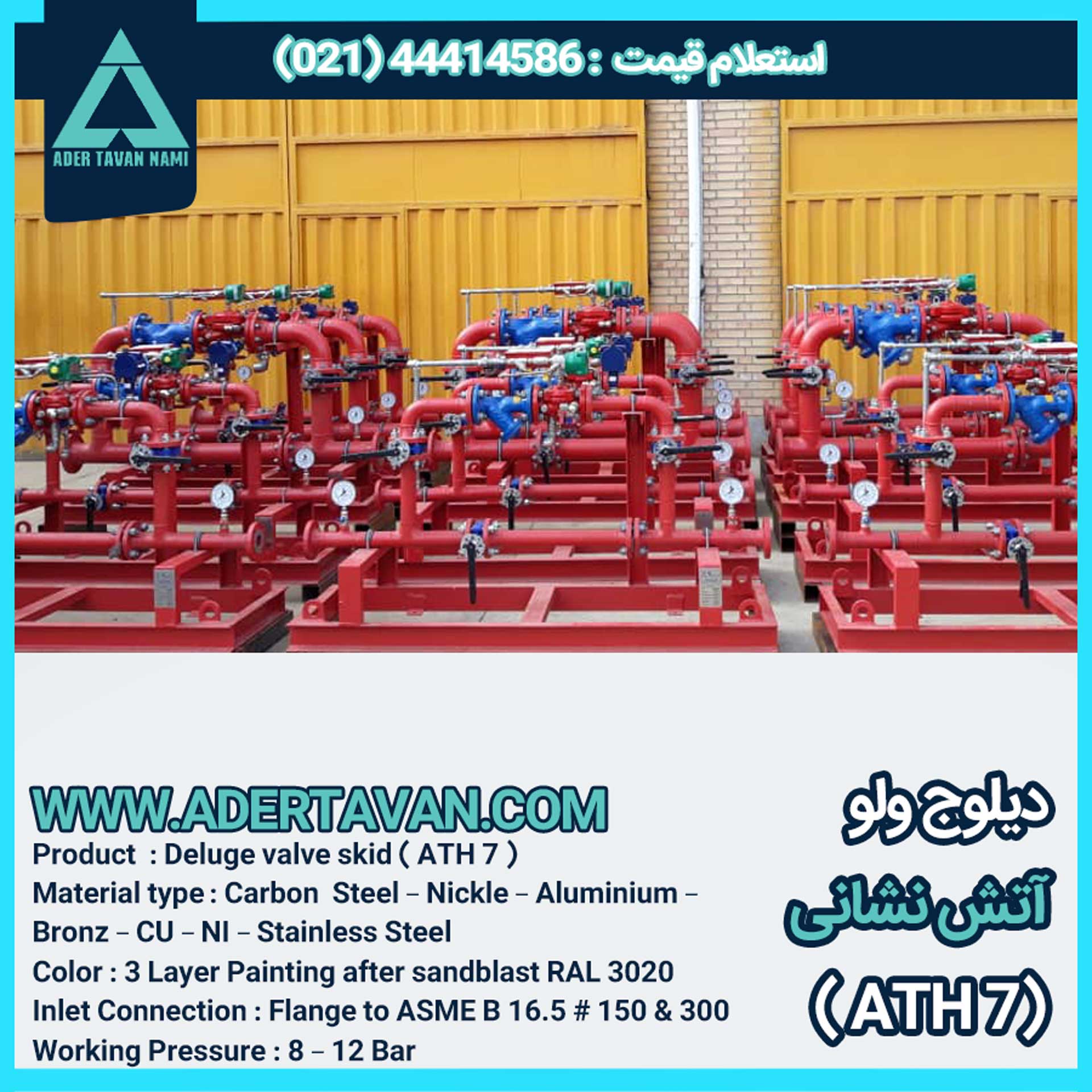

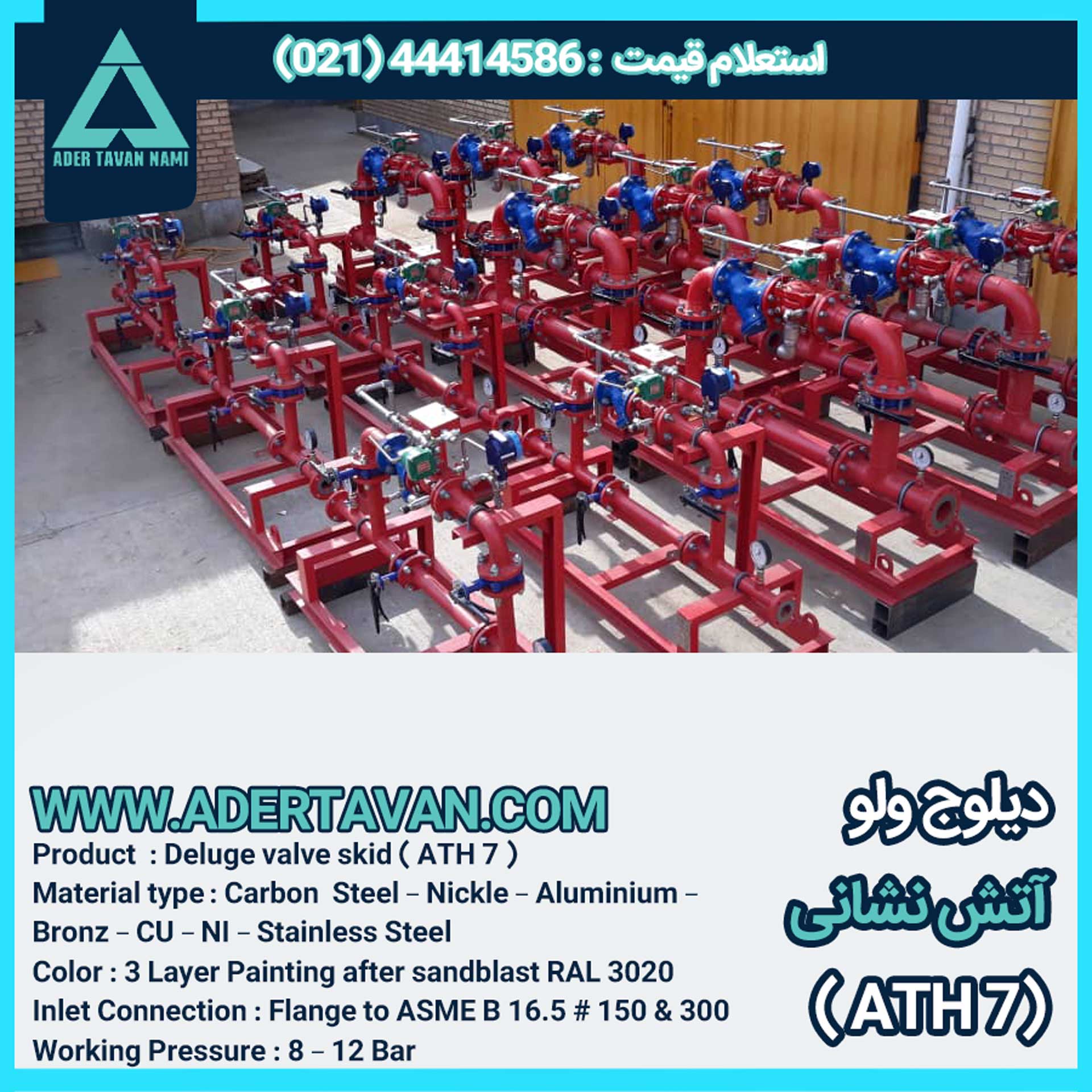

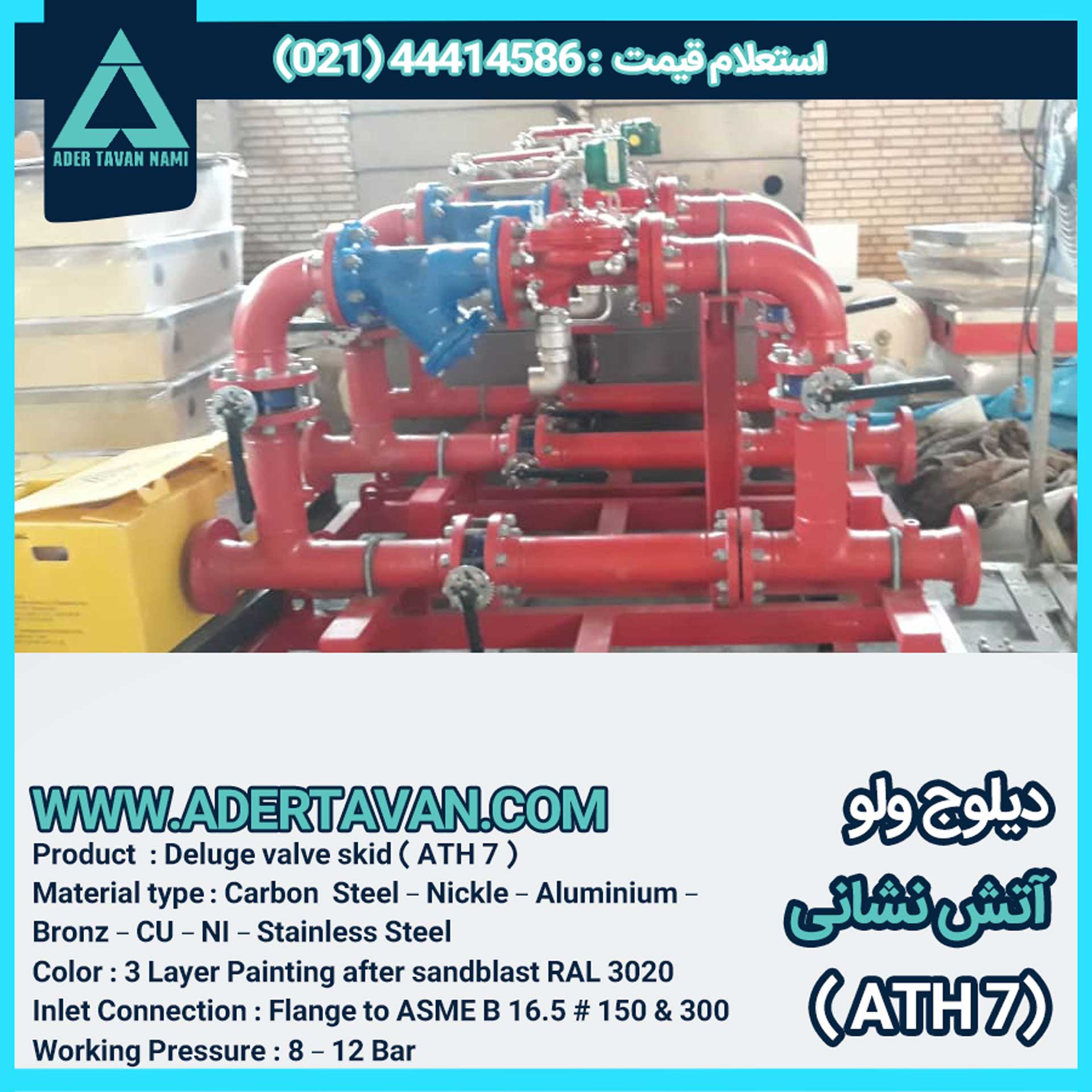

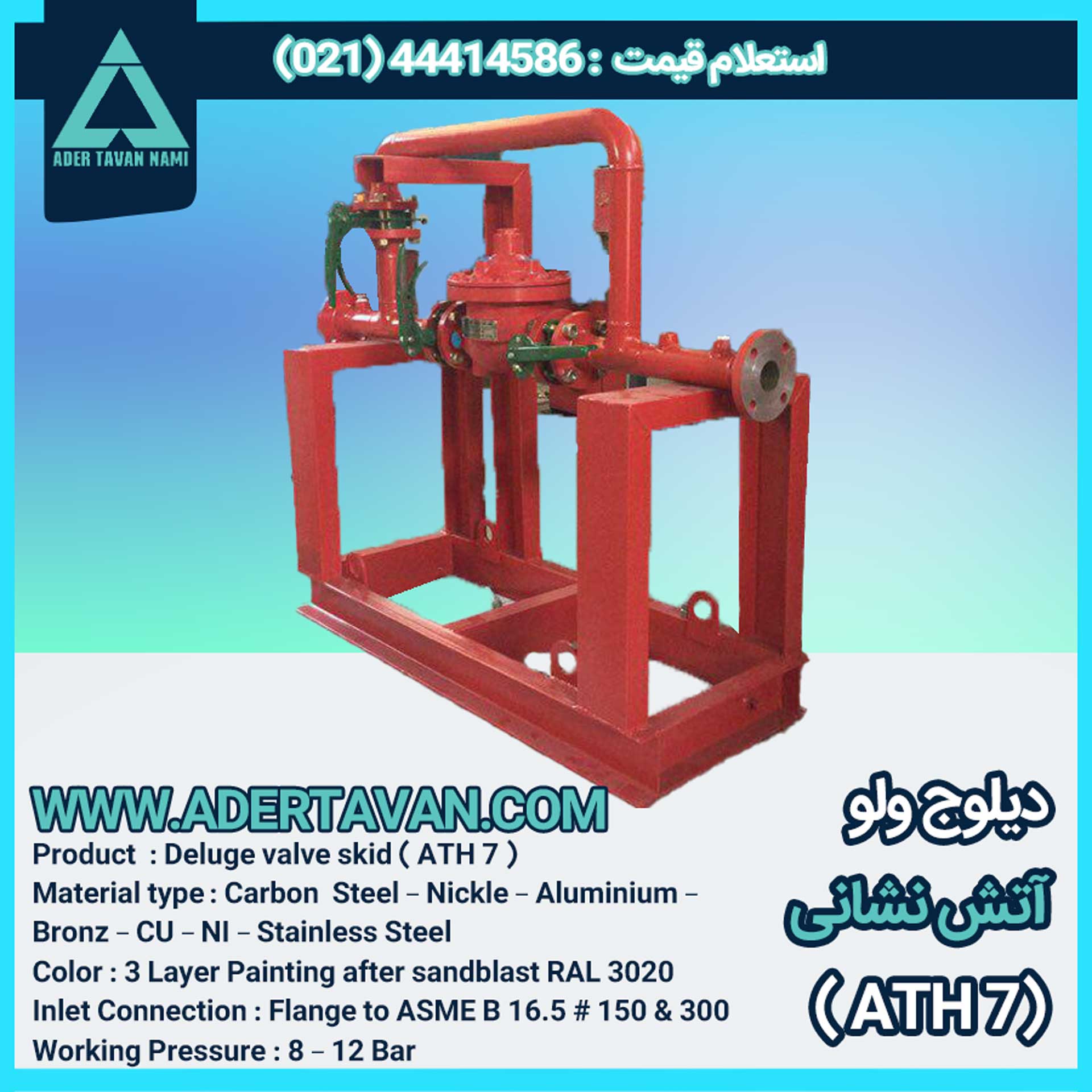

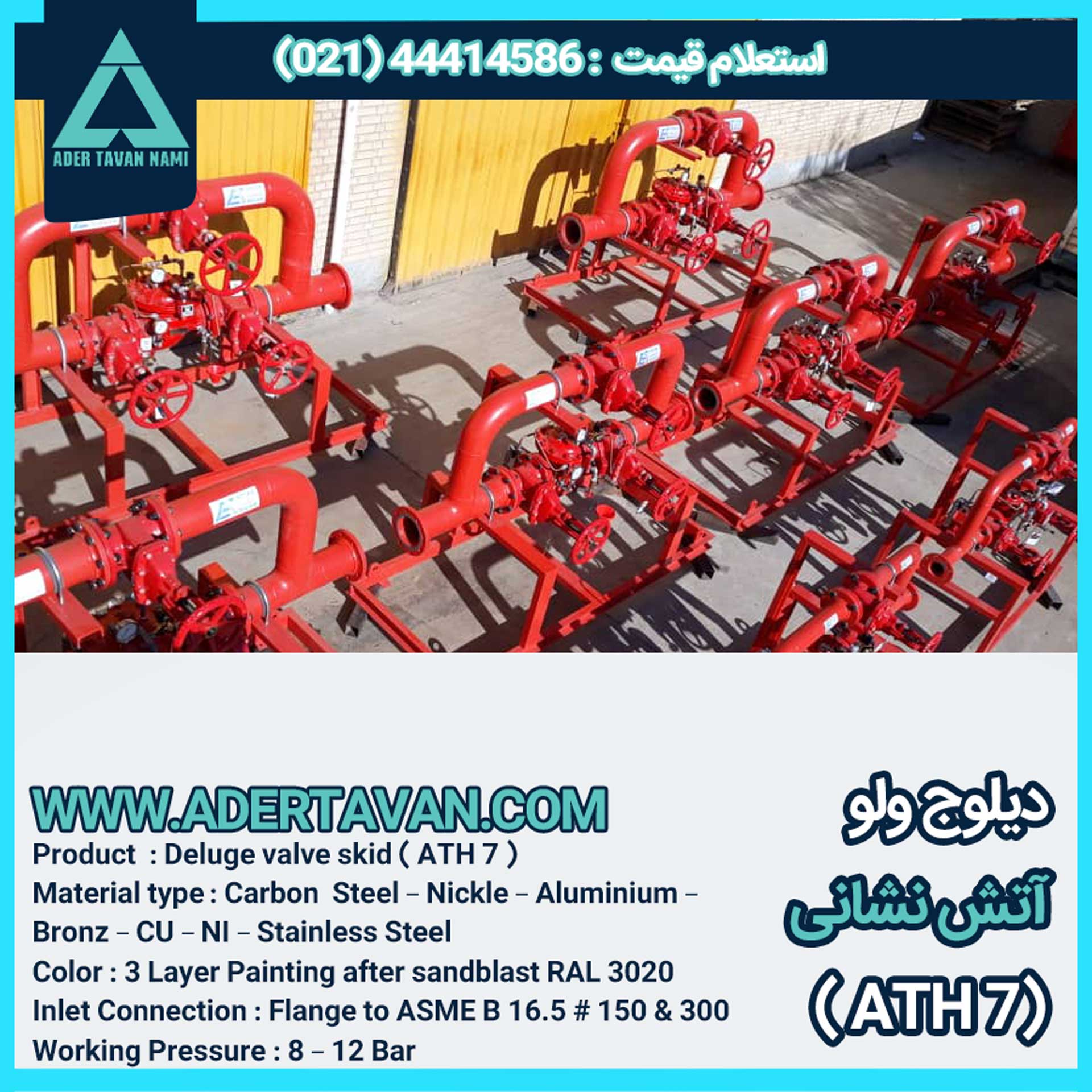

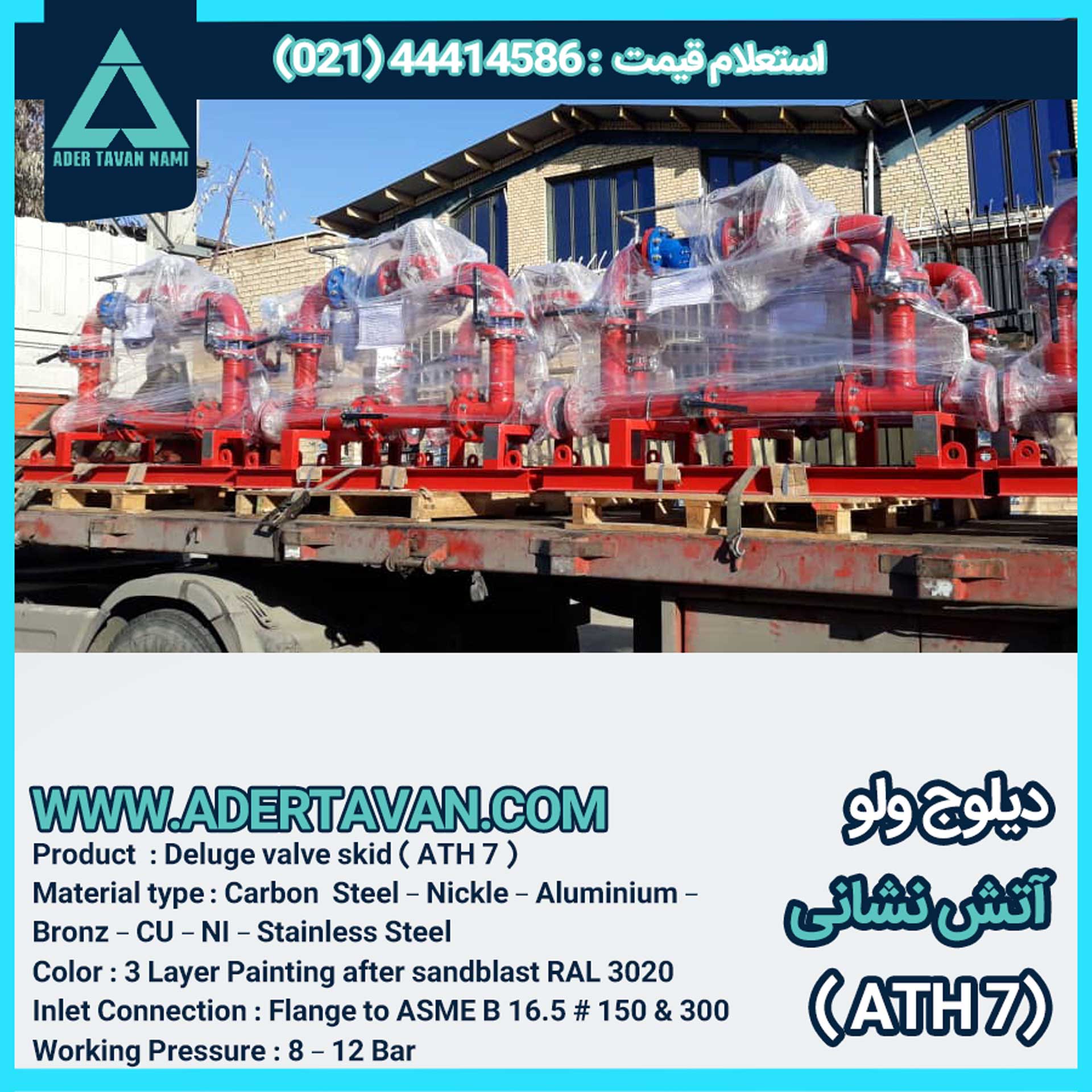

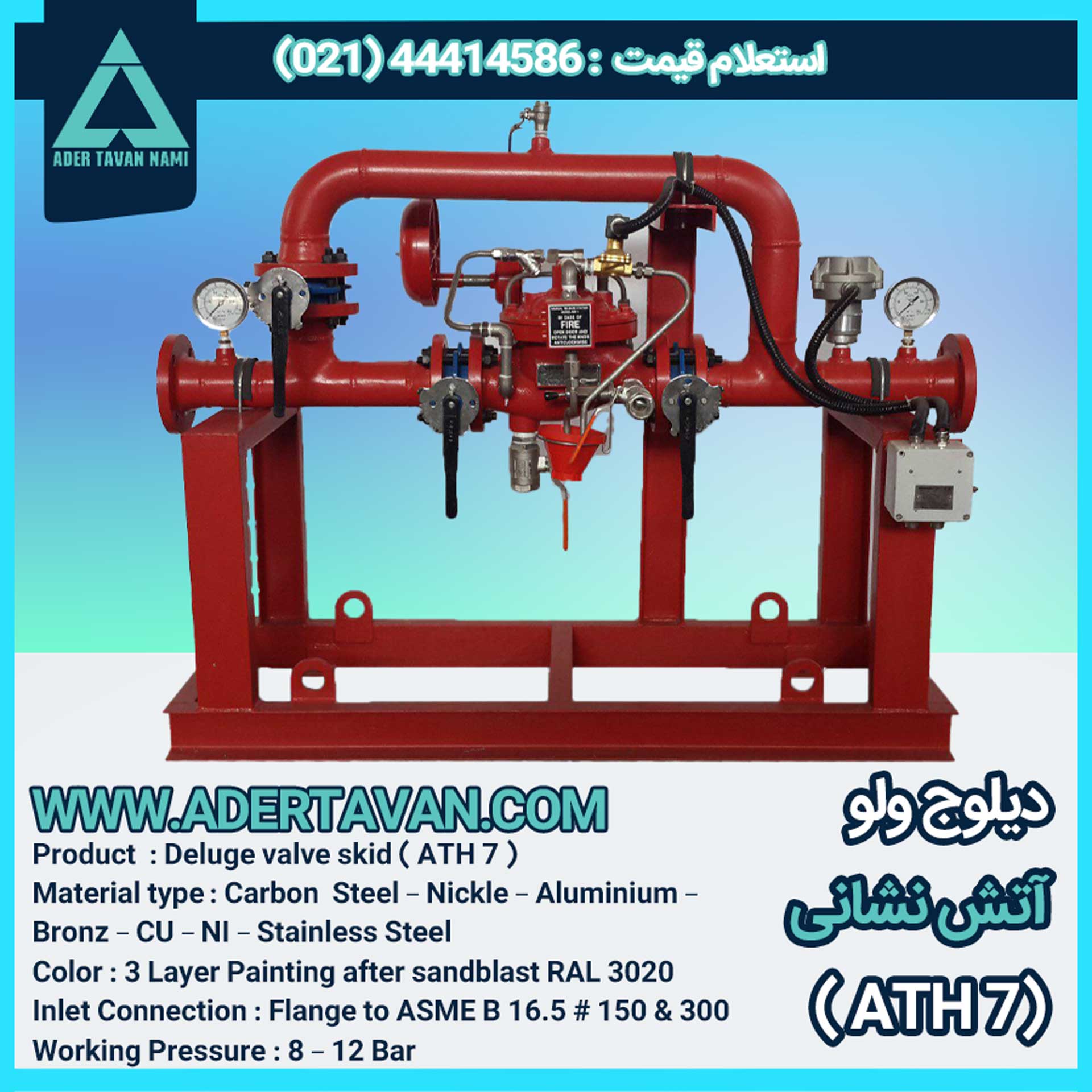

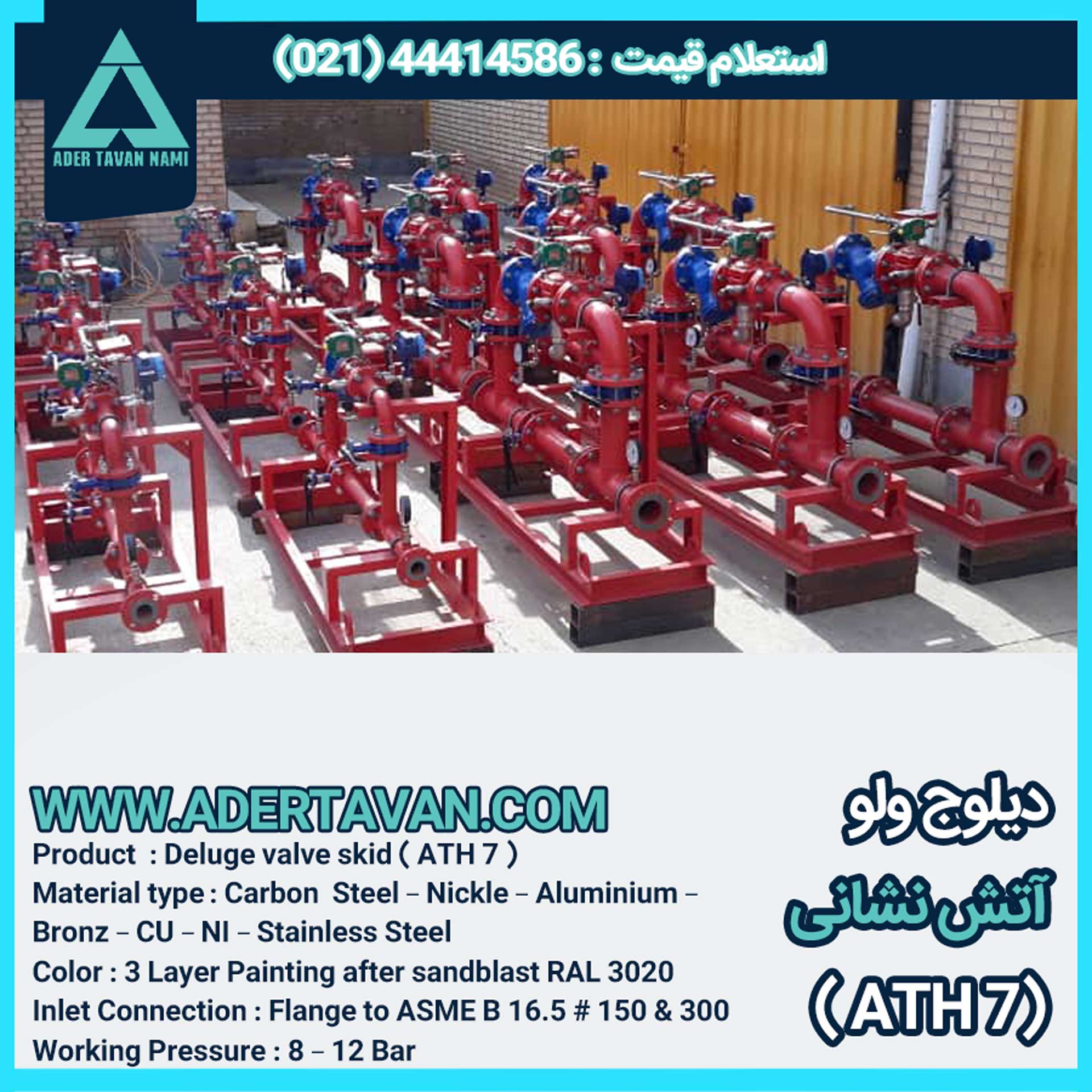

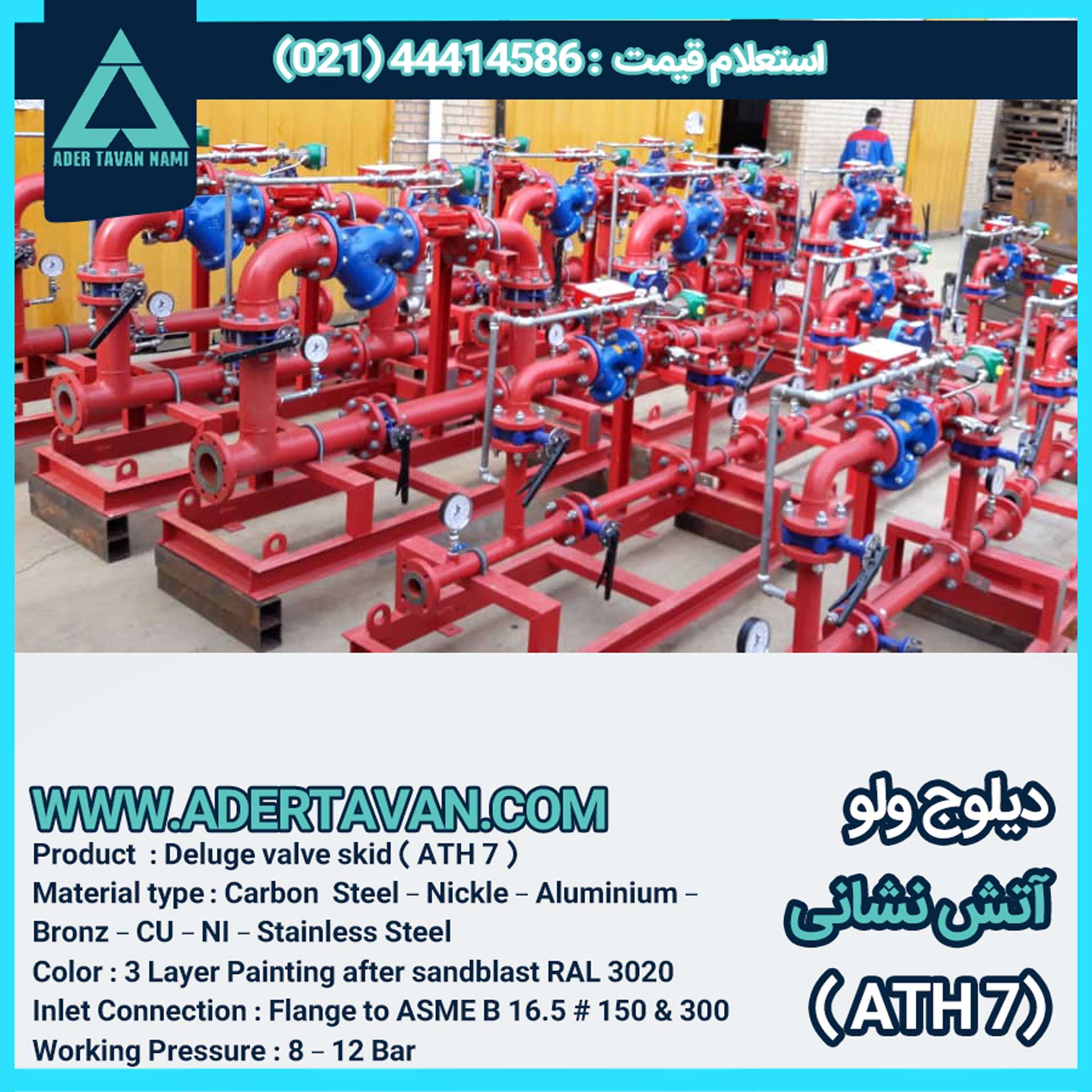

The Deluge valve skid ( ATH7 ) is a fast-acting, diaphragm-operated fire suppression valve skid engineered for rapid response in high-hazard facilities such as power plants, refineries, and oil & gas installations. Manufactured with a cast steel, naval bronze, nickel, aluminum-bronze, or stainless steel main valve body, This Product is available in sizes from 2″ to 16″ and handles a working pressure of 8–12 bar at a design temperature of up to 70°C. The main pipe is available in carbon steel, nickel, aluminum-bronze, copper-nickel, or stainless steel, while the supporting structure is built from carbon steel for long-term mechanical strength.
The skid includes a main line and bypass line configuration, with inlet connections to ASME B16.5 Class 150 and 300 flange standards, and a 3-layer paint finish (RAL320) after sandblasting for long-term corrosion resistance. This dual-line design allows the system to remain operational for maintenance or valve replacement without interrupting fire protection coverage.
For full technical details on how deluge valve systems work and fire hazard classification, see our Deluge Valve Systems service page.
