Fire Monitor Tower

Fire Monitor Tower ( ATH 6 ) is an accessory used to install a fire monitor at a high elevation. This equipment is typically designed and constructed according to GB 50017 and GBJ 135-90 standards, which apply to tall steel and structural frameworks.

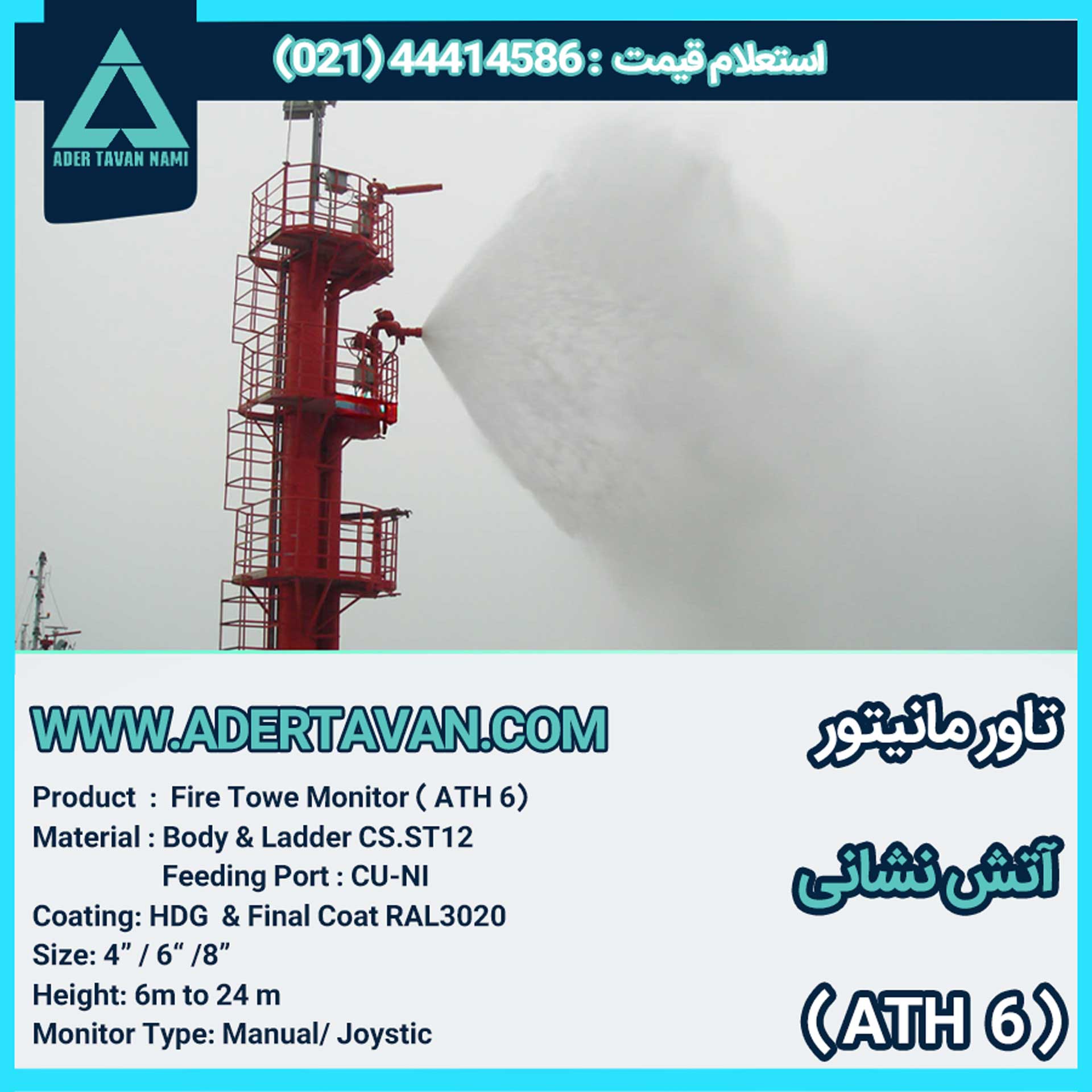

The Tower Fire Monitor by Ader Tavan Nami is designed and built up to a maximum height of 24 meters, with up to three platforms.
An example of Ader Tavan Nami’s Tower Fire Monitor is currently in operation at Phase 12 (EPC2) at heights ranging from 14 to 24 meters.

Categories: Fire Extinguisher, Fire Monitor Tower

Description

Description

Product	Fire Monitor Tower ( ATH 6 )
Type	7 m – 24 m
Material	Body = Carbon Steel Ladder = Carbon Steel Platform = Carbon Steel Feeding port = 4″ Pipe CU – NI
Working Pressure	12 Bar
Design Temperature	85 °C
Inlet Connection Size	4″ CU – NI
Inlet Connection Type	Flange # 150 ASME B 16.5
Coating	Hot Deep Galvanized & Final Coat 70 Micro Ral 320
Calculated For Wind Speed Considering a Platfrom every 6M height	136 Km/h
